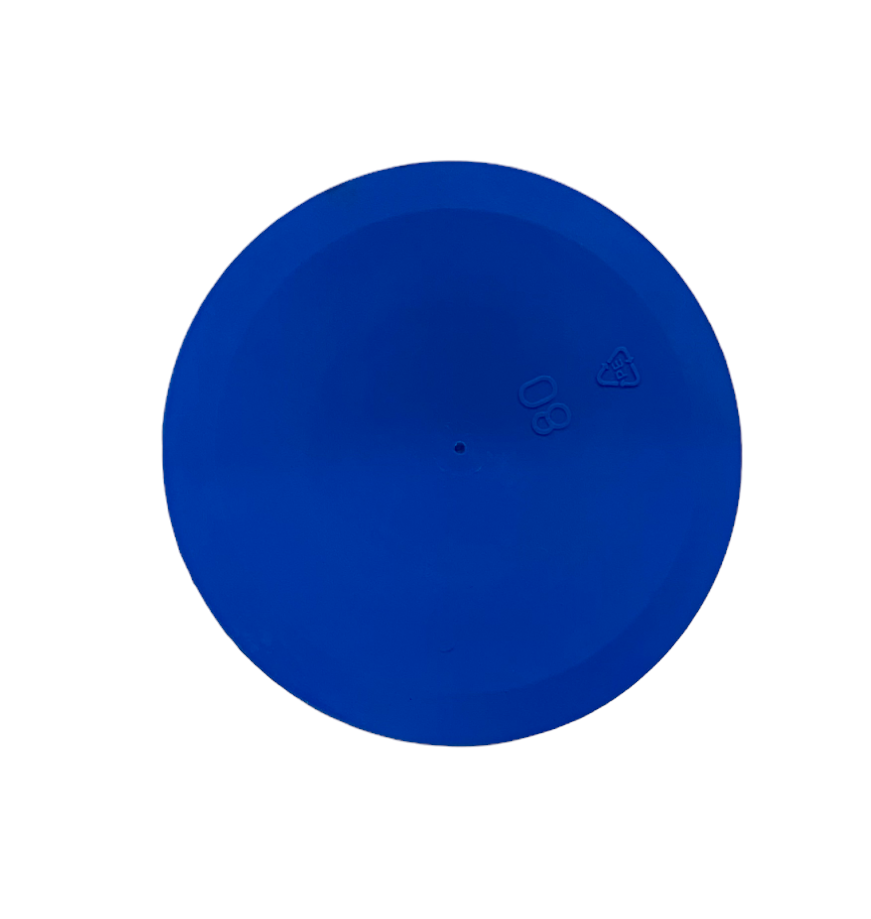

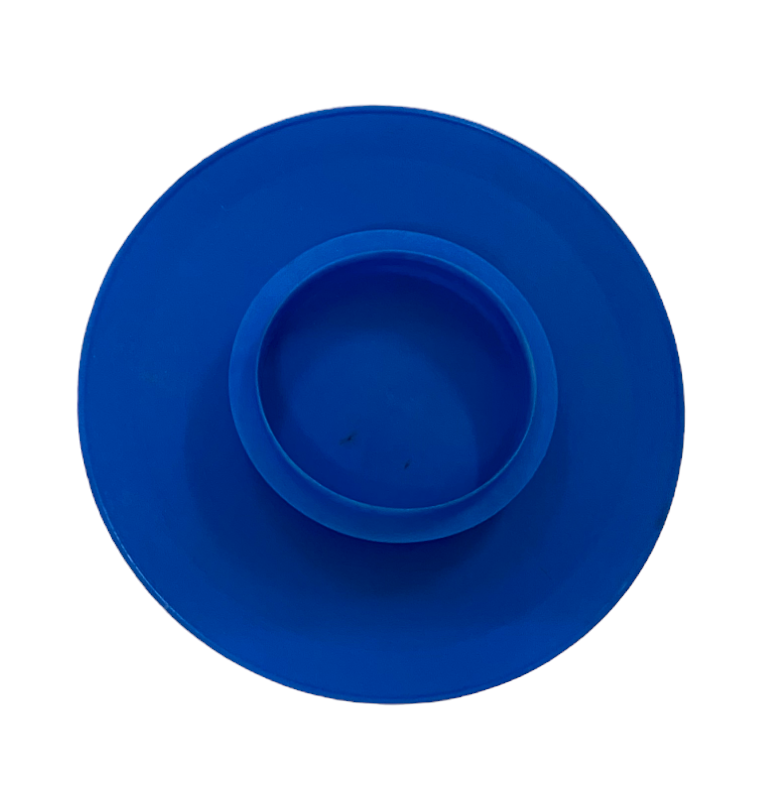

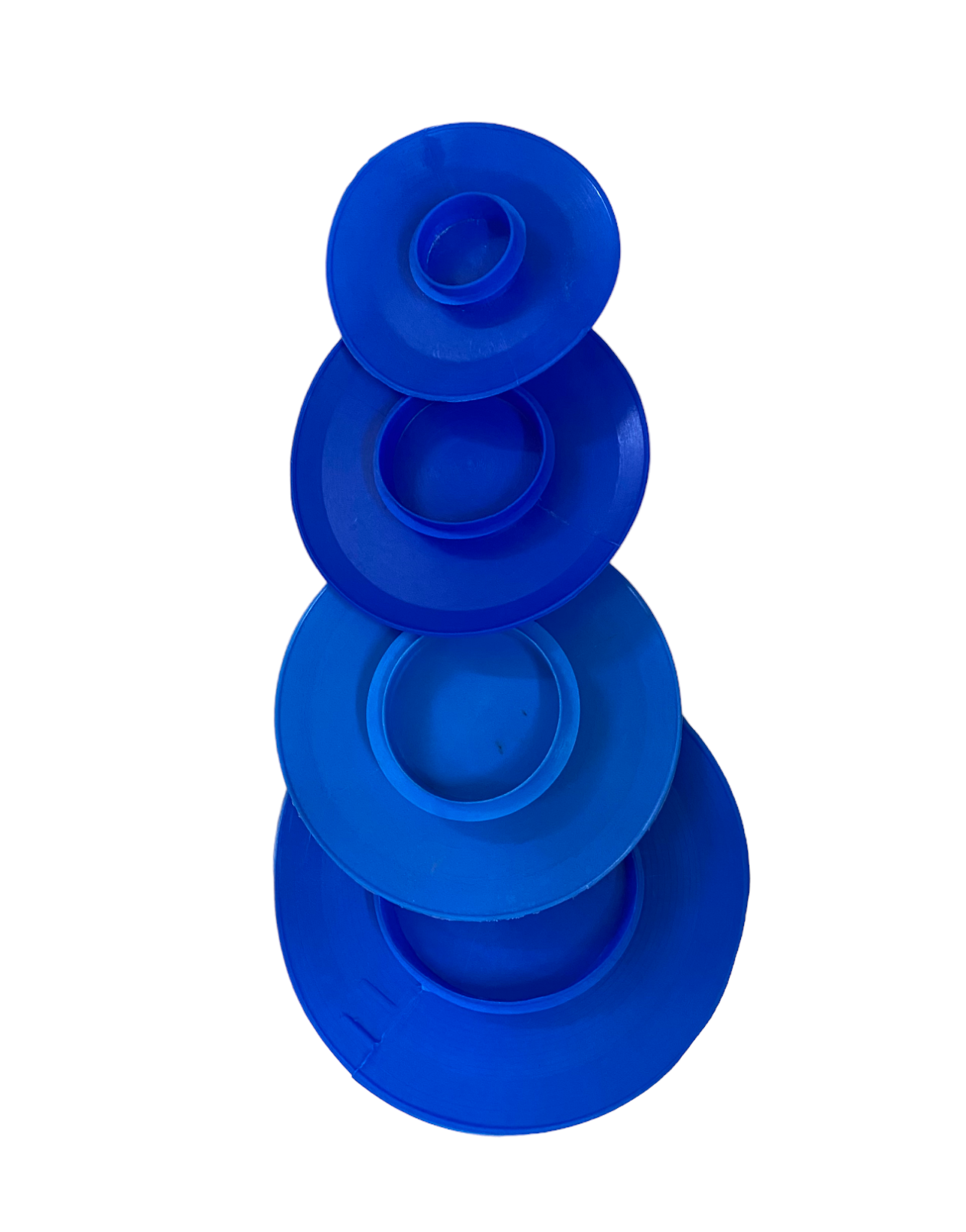

Bore Guided / Push Fit Cap
It is capable of fitting into the bore of flanges or valves, regardless of their pressure rating. This type of fitting provides the convenience of using one cap for each size. It is designed to fit on the bore ID of flanges or valves and is typically manufactured using MOC-LDPE and vinyl.

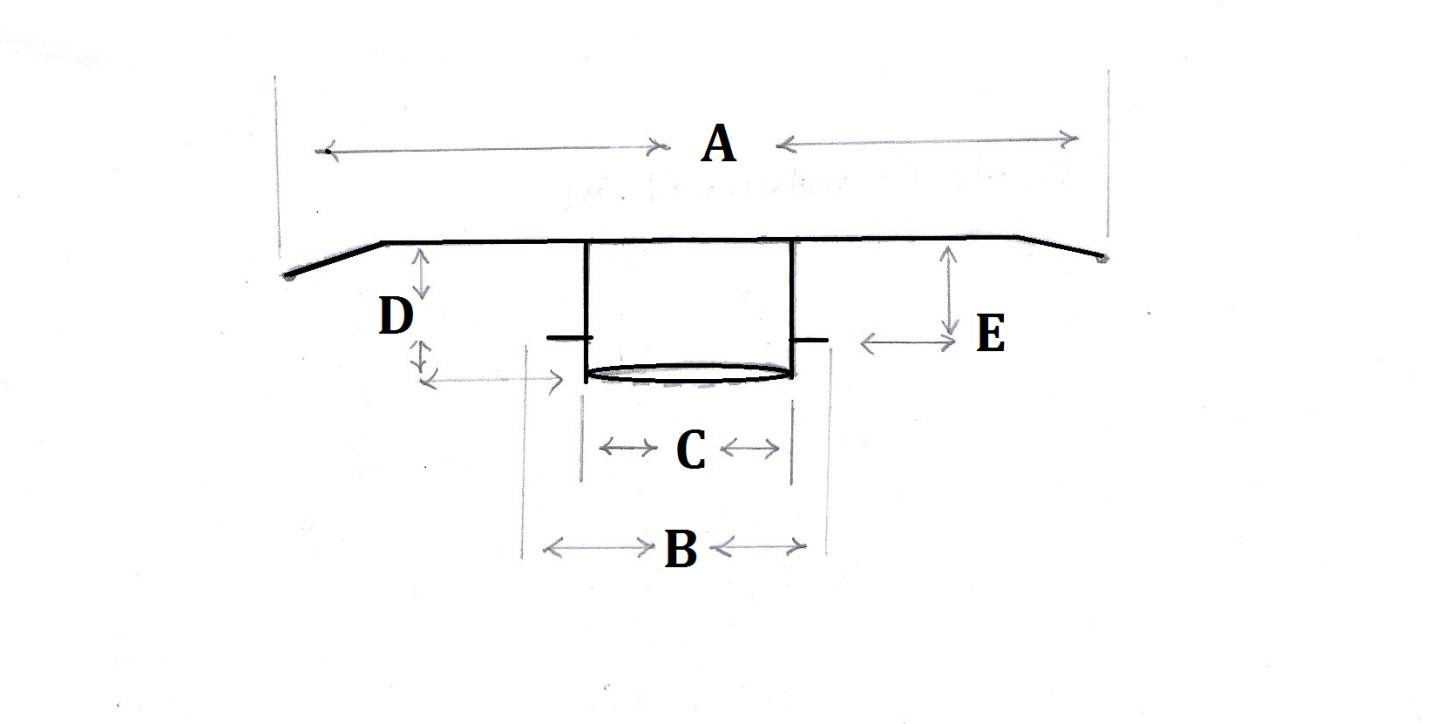

DIMENSION FOR BORE GUIDED CAP
SIZE | A | B | C | D | E |
15MM | 55 | 15 | 13 | 19 | 10 |
20MM | 66 | 20 | 17 | 23 | 10 |
25MM | 74 | 25 | 22 | 24 | 10 |
32MM | 100 | 30 | 32 | 15 | 10 |
40MM | 115 | 45 | 38.5 | 11.7 | 10 |
50MM | 112 | 56 | 43.4 | 14 | 10 |
65MM | 144 | 69 | 62 | 16.3 | 11 |
80MM | 159 | 83 | 73 | 16.5 | 11.5 |
100MM | 192.5 | 105 | 97.6 | 15.3 | 11.4 |
125MM | 239 | 133.5 | 117.9 | 17 | 14 |
150MM | 260 | 156 | 135 | 16 | 12.5 |
200MM | 320 | 209 | 186 | 14 | 10 |
