Flange End Covers

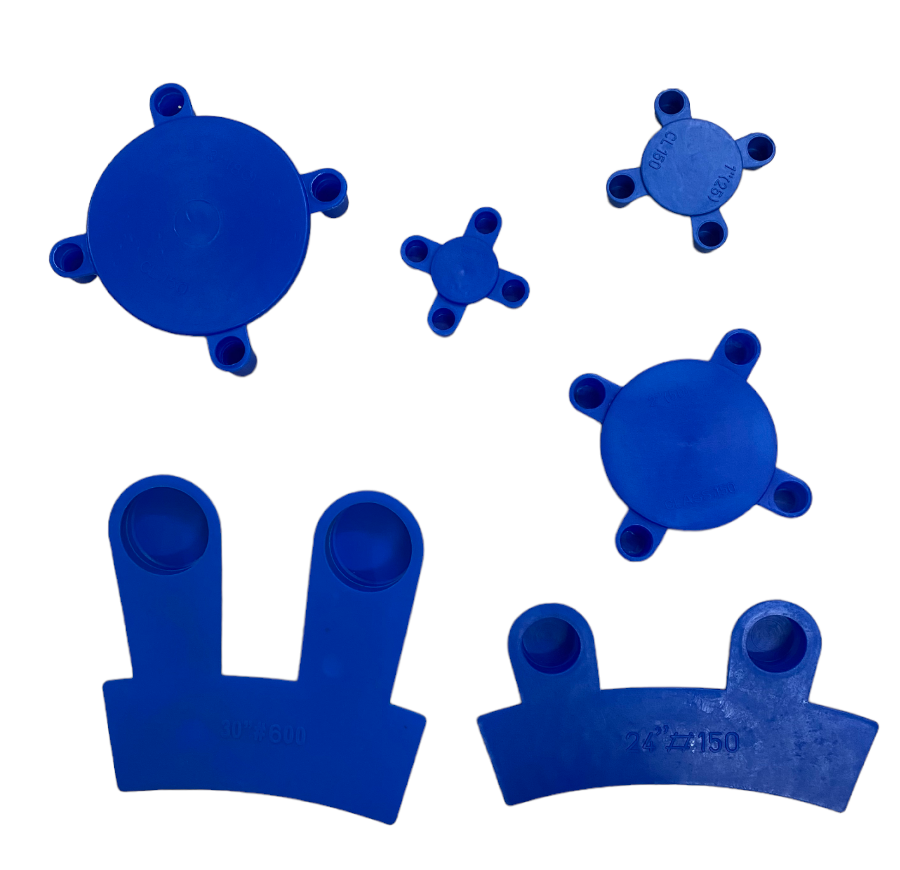

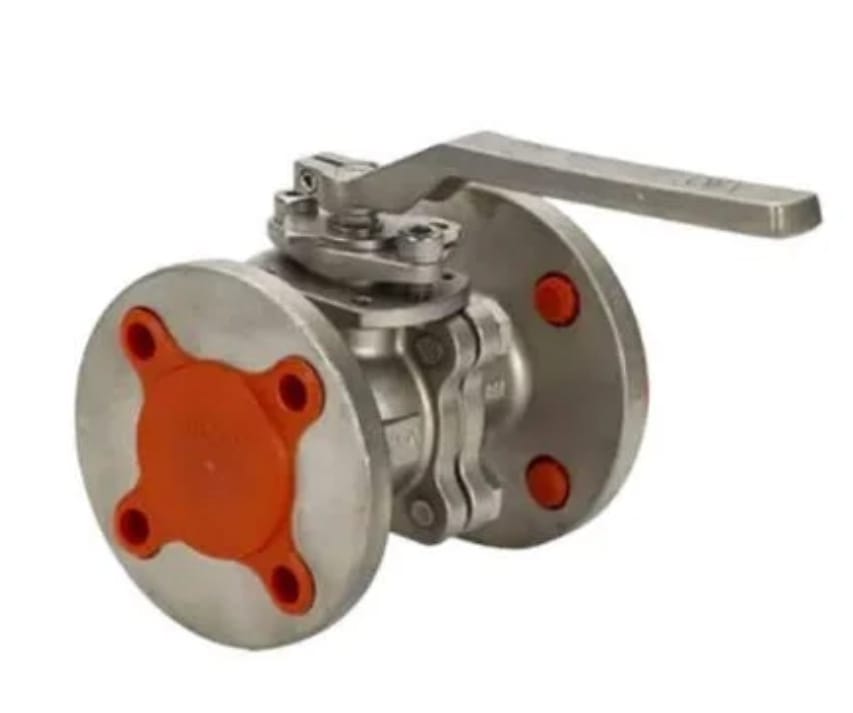

The PCD fitting four-legged type is a commonly used flange end protector, featuring four legs that firmly attach to the PCD holes of the flanges. The main body of the cap is designed to safeguard the serrated surface of the flange.
PLASTIC END COVERS FOR ANSI # 150 R/F (RAISED FACE) FLANGE
SIZE |
CLASS |
P C D |
RAISED FACE DIA |
DRILL DIA. |
½” |
150 |
60.3 |
35 |
16 |
¾” |
150 |
69.9 |
43 |
16 |
1” |
150 |
79.4 |
51 |
16 |
11/4” |
150 |
88.9 |
63.5 |
15.9 |
1 ½” |
150 |
98.4 |
73 |
16 |
2” |
150 |
120.7 |
92 |
19 |
2 ½” |
150 |
139.7 |
105 |
19 |
3” |
150 |
152.4 |
127 |
19 |
4” |
150 |
190.5 |
157 |
19 |
5” |
150 |
216.0 |
186 |
22 |
6” |
150 |
241.3 |
216 |
22.2 |
8” |
150 |
298.5 |
270 |
25.4 |
10” |
150 |
362 |
324 |
25.4 |
12” |
150 |
432 |
381 |
25.4 |
14” |
150 |
476 |
413 |
29 |
16" |
150 |
539.7 |
469.9 |
28.6 |
18" |
150 |
577.8 |
533.4 |
31.7 |
20" |
150 |
635.0 |
635.0 |
635.0 |
24" |
150 |
749.3 |
692.1 |
34.9 |
30” |
150 |
914.4 | 857.2 |
857.2 |
PLASTIC END COVERS FOR ANSI # 300 R/F (RAISED FACE) FLANGE.
SIZE |
CLASS |
P C D |
RAISED FACE DIA |
DRILL DIA. |
½” |
300/600 |
66.7 |
35 |
16 |
¾” |
300/600 |
82.5 |
43 |
19 |
1” |
300/600 |
88.9 |
51 |
19 |
11/4” |
300/600 |
98.4 |
114.3 |
127 |
1 ½” |
300/600 |
149.2 |
73 |
22.2 |
2” |
300/600 |
168.3 |
92 |
19 |
2 ½” |
300/600 |
200 |
105 |
22.2 |
3” |
300/600 |
269.9 |
127 |
22.2 |
4” |
300 |
330.2 |
157 |
22.2 |
5” |
300 |
235 |
186 |
22.2 |
6” |
300 |
387.5 |
216 |
22.2 |
8” |
300 |
451 |
270 |
25.4 |
10” |
300 |
362 |
324 |
28.6 |
12” |
300 |
514.5 |
381 |
31.8 |
14” |
300 |
476 |
413 |
32 |
16’’ |
300 |
571.5 |
469.9 |
34.9 |
18’’ |
300 |
628.6 |
533.4 |
34.9 |
20’’ |
300 |
685.8 |
584.2 |
34.9 |
24’’ |
300 |
812.8 |
692.1 |
41.6 |
30” |
300 |
996.9 |
857.2 |
47.6 |
Please Note : End Covers from ½” to 3” for Class 300 and 600 are common
PLASTIC END COVERS FOR CLASS # 600 RTJ (RING JOINT) FLANGE.
SIZE |
CLASS |
P C D |
RAISED FACE DIA |
DRILL DIA. |
1” |
600 |
88.9 |
51 |
19 |
2” |
600 |
127 |
108.8 |
19 |
3” |
600 |
168.3 |
127 |
22.2 |
4” |
600 |
215.9 |
176.25 |
25.4 |
6” |
600 |
292.1 |
24.8 |
28.6 |
8” |
600 |
349.2 |
309.3 |
31.7 |
10” |
600 |
431.8 |
357.1 |
34.9 |
12” |
600 |
489 |
414.25 |
34.9 |
16” |
600 |
603.2 |
412.0 |
41.3 |
18” |
600 |
654.0 |
533.4 |
44.4 |
20” |
600 |
723.9 |
584.2 |
44.4 |
24” | 600 |
838.2 |
692.1 |
50.8 |
30” | 600 |
1022.3 |
857.2 |
54.00 |
Please Note : End Covers from ½” to 3” for Class 300 and 600 are common
PLASTIC END COVERS FOR CLASS # 900 (R/F)
SIZE |
CLASS |
P C D |
RAISED FACE DIA |
DRILL DIA. |
½’’ |
900 |
82.6 |
35.05 |
22.4 |
¾’’ |
900 |
88.9 |
42.93 |
22.4 |
1” |
900 |
101.6 |
71.5 |
25.4 |
PLASTIC END COVERS FOR CLASS # 900 (R/F AND RTJ)
SIZE |
CLASS |
P C D |
RAISED FACE DIA |
DRILL DIA. |
1 ½’’ |
900 |
124 |
73.15 |
28.4 |
2” |
900 |
165 |
109 |
25.4 |
3” |
900 |
190.5 |
156.9 |
25.4 |
4” |
900 |
234.9 |
182 |
31.7 |
6” |
900 |
317.5 |
242.8 |
31.7 |
8” |
900 |
393.7 |
309.3 |
38.1 |
10” |
900 |
469.6 |
363.5 |
38.1 |
12” |
900 |
533.4 |
420.6 |
38.1 |
Please Note: We can use RTJ End Covers for Raised Face Flanges also
PLASTIC END COVERS FOR CLASS # 1500 (R/F)
SIZE |
CLASS |
P C D |
RAISED FACE DIA |
DRILL DIA. |
½’’ |
1500 |
82.6 |
35.05 |
22.4 |
¾’’ |
1500 |
88.9 |
42.93 |
22.4 |
1” |
1500 |
101.6 |
60.1 |
60.1 |
Please Note : We can use RTJ End Covers for Raised Face Flanges also
PLASTIC END COVERS FOR CLASS # 1500 (R/F AND RTJ)
SIZE |
Class |
P C D |
RAISED FACE DIA |
DRILL DIA. |
¾’’ |
2500 |
95.3 |
42.9 |
22.4 |
1” |
2500 |
108 |
82.5 |
25.4 |
2” |
2500 |
171.4 |
141 |
28.6 |
3” |
2500 |
228.6 |
169.5 |
34.9 |
4” |
2500 |
273.0 |
204 |
41.3 |
10” |
2500 |
539.7 |
363.5 |
66.7 |
12” |
2500 |
619.1 |
571.5 |
73 |
Please Note : We can use RTJ End Covers for Raised Face Flanges also
PLASTIC END COVERS FOR CLASS # 2500 (RF AND RTJ CAP)
SIZE |
Class |
P C D |
RAISED FACE DIA |
DRILL DIA. |
6” |
2500 |
368.3 |
249.2 |
54 |
8” |
2500 |
438.1 |
319 |
54 |
