Plastic End Cap for O.D surface of Pipe Normal Bore Size NB

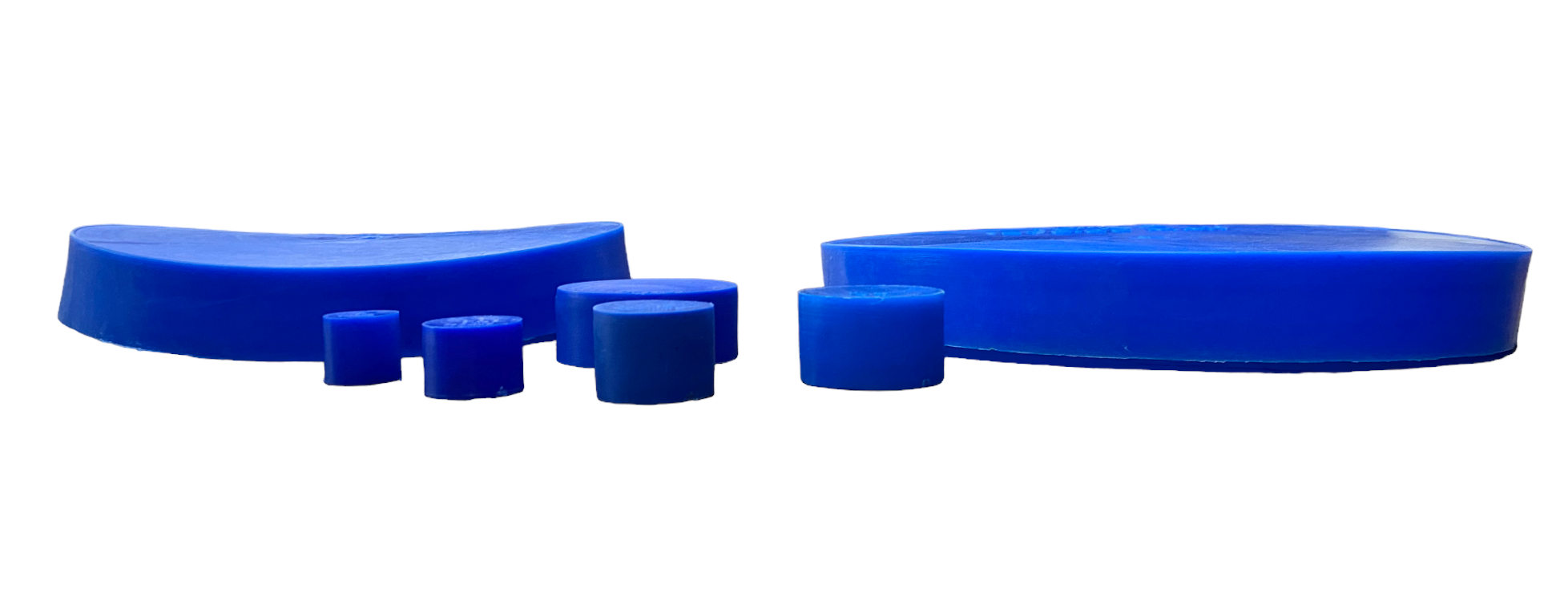

OD fitting Caps- Typically composed of LDPE, these caps are designed to fit over the outside diameter (OD) of a pipe and are available in standard sizes that comply with ANSI 36.10 pipe standards, ranging from 1/2 inch to 100 inches. Additionally, larger sizes can be customized to meet specific requirements. These caps are primarily used to prevent the entry of foreign particles during transportation, storage, and maintenance operations.
Plastic End Cap for O.D surface of Pipe Normal Bore Size NB
| SR NO | PIPE SIZE N.B. | APPROX O.D.OF PIPE SIZE IN MM |
| 1 | 1/8'' NB | 10.3 DIA |
| 2 | ¼'' NB | 13.7 DIA |
| 3 | 3/8'' NB | 17.1 DIA |
| 4 | ½'' NB | 21.30 DIA |
| 5 | ¾'' NB | 26.7 DIA |
| 6 | 1'' NB | 33.4 DIA |
| 7 | 1 ¼'' NB | 42.2 DIA |
| 8 | 1 ½'' NB | 48.26 DIA |
| 9 | 2'' NB | 60.32 DIA |
| 10 | 2 ½'' NB | 73.02 DIA |
| 11 | 3'' NB | 88.90 DIA |
| 12 | 3 ½'' NB | 101.60 DIA |
| 13 | 4'' NB | 114.30 DIA |
| 14 | 5'' NB | 141.30 DIA |
| 15 | 6'' NB | 168.28 DIA |
| 16 | 8'' NB | 219.08 DIA |
| 17 | 10'' NB | 273.05 DIA |
| 18 | 12'' NB | 323.85 DIA |
| 17 | 14'' NB | 355.60 DIA |
| 18 | 16'' NB | 406.40 DIA |
| 19 | 18'' NB | 457.20 DIA |
| 20 | 20'' NB | 508.00 DIA |
| 21 | 24'' NB | 609.60 DIA |
| 22 | 26'' NB | 660.40 DIA |
| 23 | 24'' NB | 609.60 DIA |
| 24 | 26 "NB | 660.40 DIA |
| 25 | 28" NB | 711.20 DIA |
| 26 | 30" NB | 762.00 DIA |
| 27 | 36" NB | 914.40 DIA |
| 28 | 42" NB | 1016.00 DIA |
| 29 | 48" NB | 1219.20 DIA |
| 30 | 54" NB | 1371.60 DIA |
| 31 | 60" NB | 1524.00 DIA |
| 32 | 72" NB | 1828.80 DIA |
